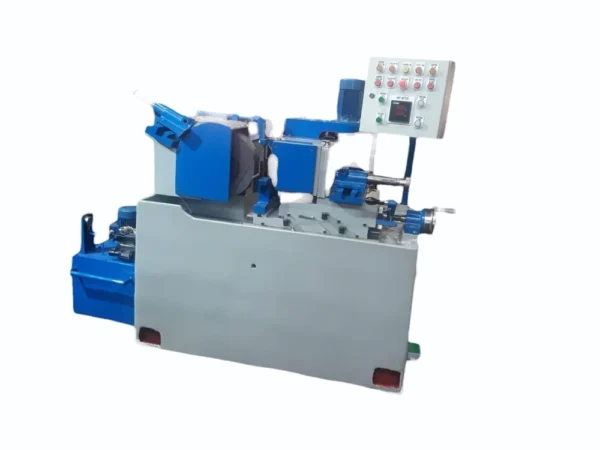

Three Phase Centerless Grinding Machine / Model: RG-75
Assisted by a skilled and experienced workforce, we are engaged in manufacturing and supplying a wide range of Three Phase Centerless Grinding Machine. The offered range of Grinding machines is facilitated with a Grinding Wheel with a separate motor.
| Color | Grey, Blue |
| Model Name/Number | RG-75 |
| Grinding Material | Metal |
| Automatic Grade | Automatic |
| Grinding Wheel Dimensions | 350 x 100 x 127mm (Diameter x Bore x Width) |
| Finish | Color Coated |
| Minimum Grinding Diameter | 3 mm |
| Power Source | Electric |
| Brand | Riat |
| Weight | 1900 kg |
| Frequency | 50 Hz |
| Grinding Wheel Motor | 7.5 HP |
| Grinding Wheel Speed | 1800/2050 RPM |
| Regulating Wheel Speed | 3 |
| Phase | Three Phase |
| Regulating Wheel Electric Motor | 1 HP |
| Max Grinding Diameter | 75 mm |
| Regulating Wheel Dimension | 230 x 100 x 76.2mm (Diameter x Bore x Width) |
| Country of Origin | Made in India |
Assisted by a skilled and experienced workforce, we are engaged in manufacturing and supplying a wide range of Three Phase Centerless Grinding Machine. The offered range of Grinding machines is facilitated with a Grinding Wheel with a separate motor. This adjustment provides the desired lubrication and durable finish standards.
